Front Control Arms replacement parts for 2020 Polaris RZR Turbo PRO XP LT (R03)

OEM Parts Polaris 2020 Polaris RZR Turbo PRO XP LT (R03) Front Control Arms

FRONT CONTROL ARMS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

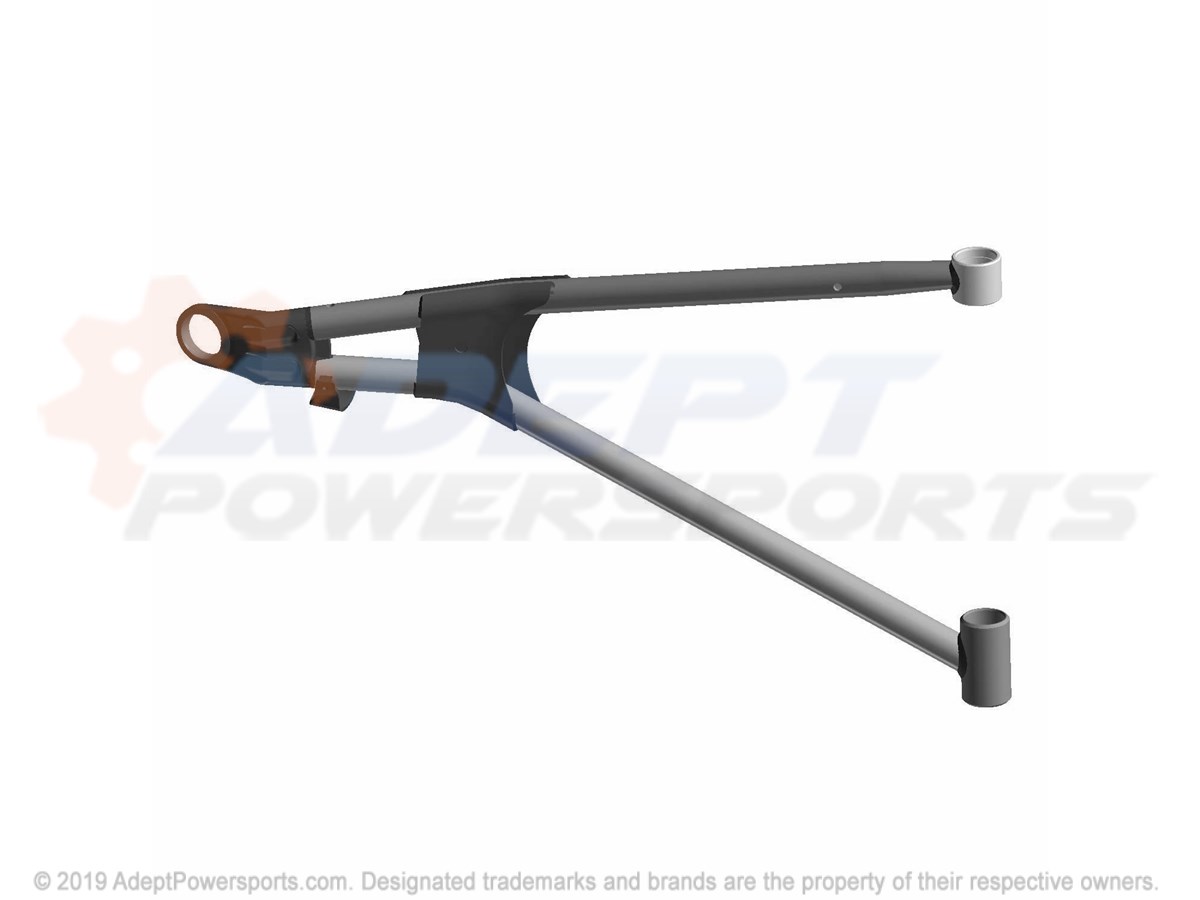

1	WELD-CTRL, ARM, UPR, FR, LH, 64, BLU Part #: 1544322-751 Required per assembly: 1 Note: LC Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, RED Part #: 1544322-293 Required per assembly: 1 Note: LR Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, BLK Part #: 1544322-458 Required per assembly: 1 Note: LT Currently Not Available

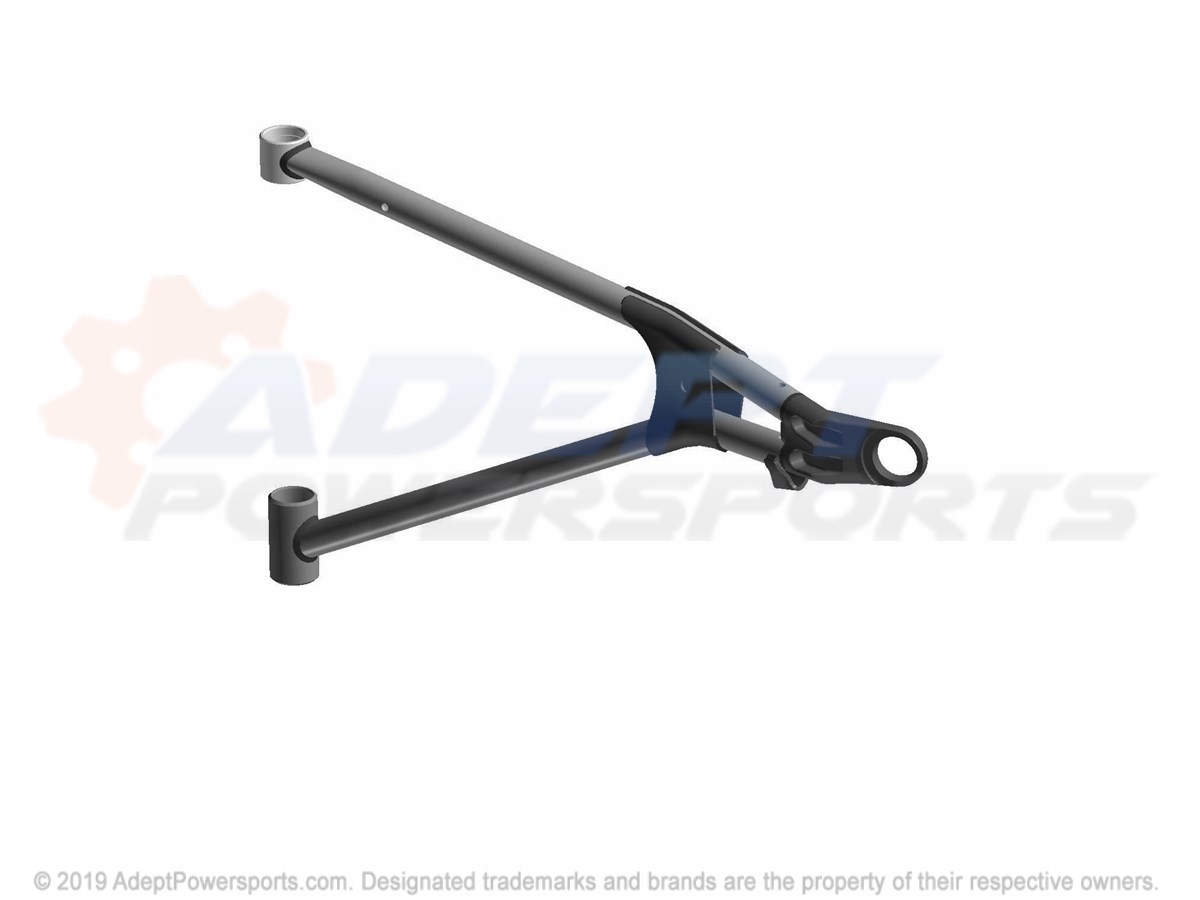

2	WELD-CTRL, ARM, UPR, FR, RH, 64, BLK Part #: 1544323-458 Required per assembly: 1 Note: LT Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, BLU Part #: 1544323-751 Required per assembly: 1 Note: LC Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, RED Part #: 1544323-293 Required per assembly: 1 Note: LR Currently Not Available

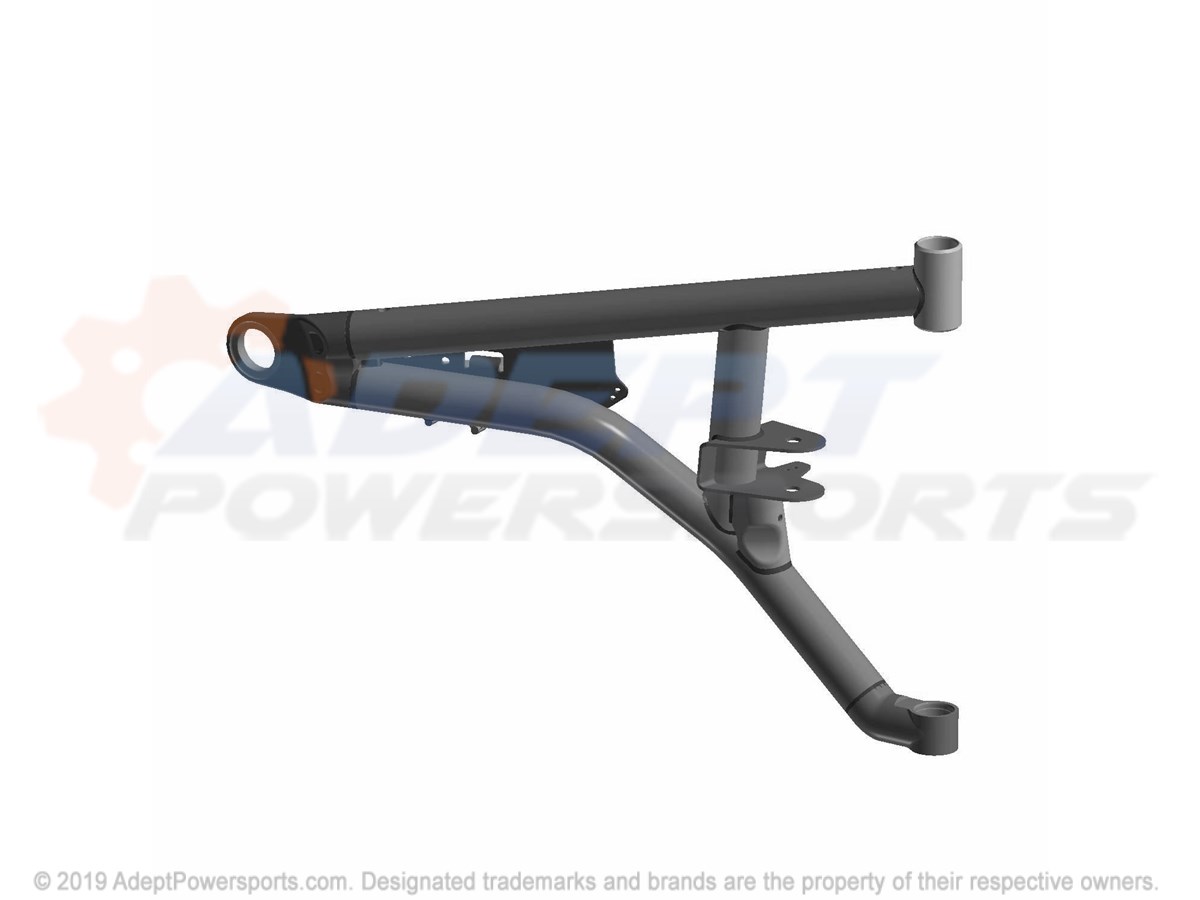

3	WELD-CTRL, ARM, LWR, FR, LH, 64, BLU Part #: 1544336-751 Required per assembly: 1 Note: LC Currently Not Available
3	WELD-CTRL, ARM, LWR, FR, LH, 64, RED Part #: 1544336-293 Required per assembly: 1 Note: LR Currently Not Available
3	WELD-CTRL, ARM, LWR, FR, LH, 64, BLK Part #: 1544336-458 Required per assembly: 1 Note: LT Currently Not Available

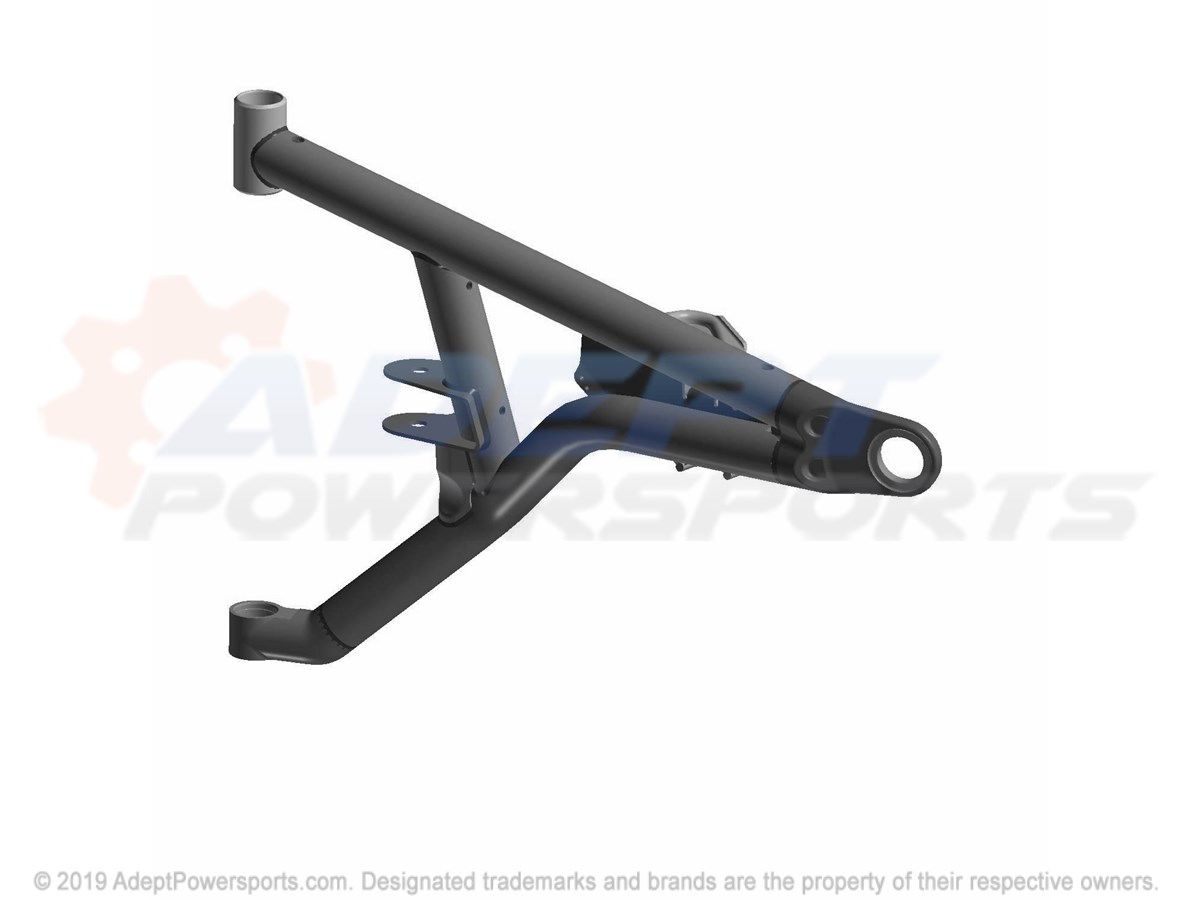

4	WELD-CTRL, ARM, LWR, FR, RH, 64, BLK Part #: 1544337-458 Required per assembly: 1 Note: LT Currently Not Available
4	WELD-CTRL, ARM, LWR, FR, RH, 64, RED Part #: 1544337-293 Required per assembly: 1 Note: LR Currently Not Available
4	WELD-CTRL, ARM, LWR, FR, RH, 64, BLU Part #: 1544337-751 Required per assembly: 1 Note: LC Currently Not Available
5	ASM-PIVOT, CAP, SEALED, M12 Part #: 1543612 Required per assembly: 8 Currently Not Available
6	ASM-PIVOT, CAP, SEALED, M12, MINI Part #: 1543998 Required per assembly: 8 Currently Not Available
7	SHAFT-PIVOT, SHORT, M12 Part #: 5140555 Required per assembly: 4 Currently Not Available
8	SCR-HXFL-M12X1.5X75 10.9 ZOD Part #: 7521073 Required per assembly: 2 Currently Not Available
9	BUSHING-STANDARD, SUSP, M12 Part #: 5452271 Required per assembly: 12 Currently Not Available
10	BALL-JOINT, HARDENED, HI-MISALGN Part #: 7082892 Required per assembly: 4 Currently Not Available
11	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
12	SCR-HXFL-M12X1.5X65 10.9 ZOD Part #: 7520477 Required per assembly: 2 Currently Not Available
13	SCR-HXFL-M12X1.5X80 10.9 ZOD Part #: 7520478 Required per assembly: 2 Currently Not Available
14	SCR-HXFL-M12X1.5X105 10.9 ZOD Part #: 7520479 Required per assembly: 4 Currently Not Available
15	NUT, NYLOK Part #: 7547334 Required per assembly: 8 Currently Not Available
16	WASHER-FL, 13X2.5 Part #: 7556287 Required per assembly: 8 Currently Not Available
17	RING, RETAINING Part #: 7710716 Required per assembly: 4 Currently Not Available
18	30MM, SPIRAL, RING, STEEL Part #: 7710869 Required per assembly: 4 Currently Not Available
