OEM Parts Polaris 2020 Polaris RZR Turbo PRO XP LT (R03) Cab Frame

2020 Polaris RZR Turbo PRO XP LT (R03) Z20RAB92LR/D92LC/E92LT - Cab Frame

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

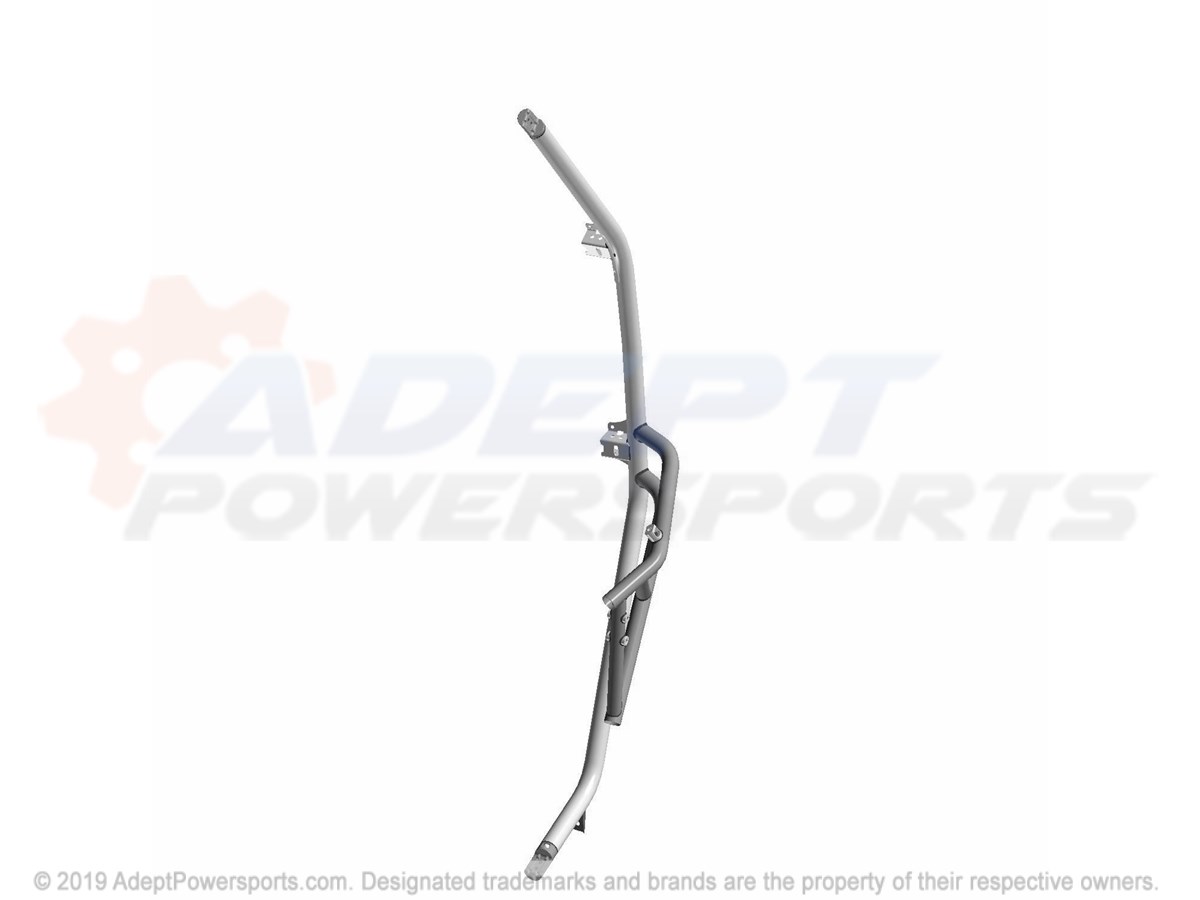

Polaris 1025304-458 Weld-Rops, A-C, Pillar, Lh, Blk

WELD-ROPS, A-C, PILLAR, LH, BLK

Part #: 1025304-458 Required per assembly: 1
Currently Not Available
2
Polaris 1025305-458 Weld-Rops, A-C, Pillar, Rh, Blk

WELD-ROPS, A-C, PILLAR, RH, BLK

Part #: 1025305-458 Required per assembly: 1
Currently Not Available
3
Polaris 7519906 Screw

SCREW

Part #: 7519906 Required per assembly: 8
Currently Not Available
4
Polaris 7520478 Scr-Hxfl-M12x1.5X80 10.9 Zod

SCR-HXFL-M12X1.5X80 10.9 ZOD

Part #: 7520478 Required per assembly: 4
Currently Not Available
5
Polaris 7547334 Nut, Nylok

NUT, NYLOK

Part #: 7547334 Required per assembly: 4
Currently Not Available
6

NUT-HEX-M10X1.5 10 ZB3 NYL

Part #: 7547746 Required per assembly: 8
Currently Not Available
7

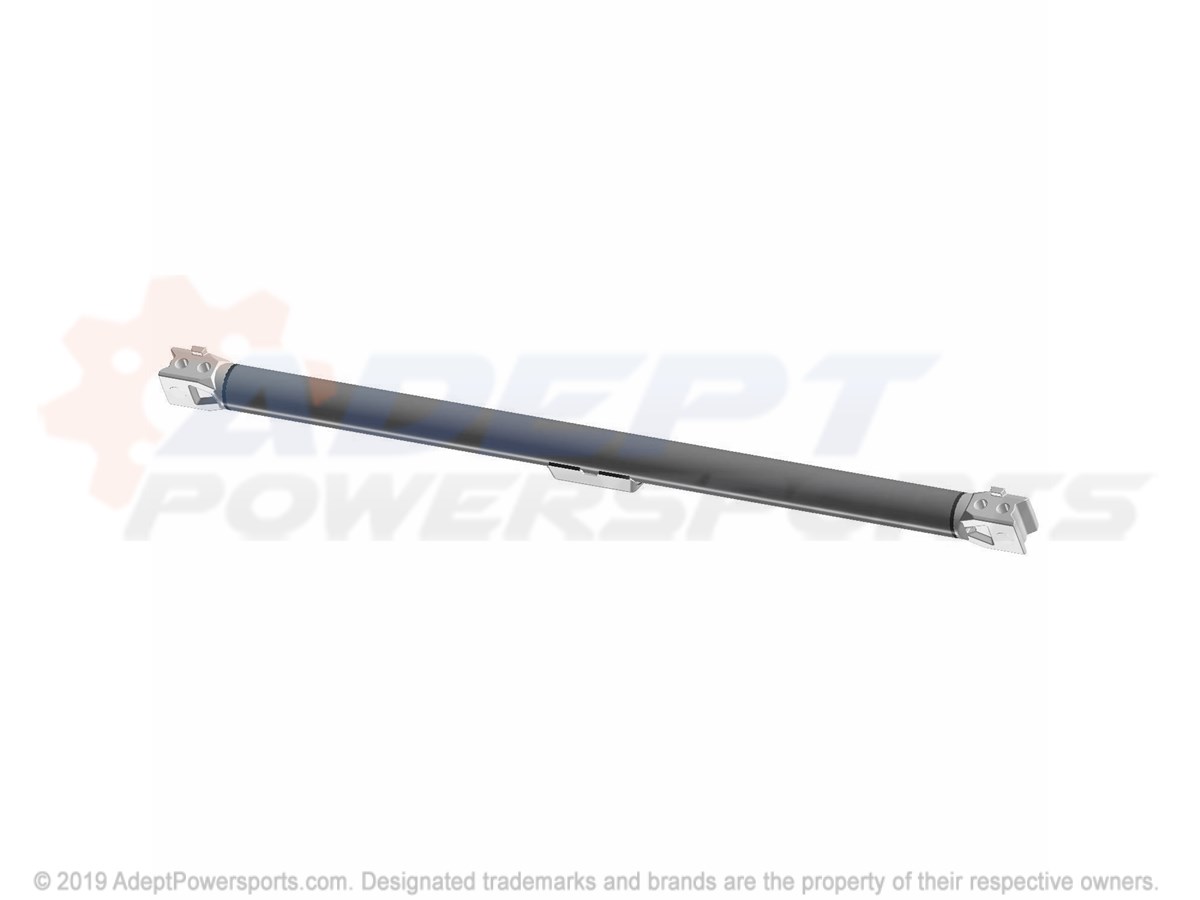

Polaris 1025306-458 Weld-Rops, Front, Cross, Blk

WELD-ROPS, FRONT, CROSS, BLK

Part #: 1025306-458 Required per assembly: 1
Currently Not Available
8
Polaris 7520117 Nut-Hxfl-M10x1.5 8 Zb3 Nyl

NUT-HXFL-M10X1.5 8 ZB3 NYL

Part #: 7520117 Required per assembly: 8
Currently Not Available
9
Polaris 7520488 Scr-Hxfl-M10x1.5X75 10.9 Zpb

SCR-HXFL-M10X1.5X75 10.9 ZPB

Part #: 7520488 Required per assembly: 8
Currently Not Available
10

WELD-ROPS, REAR, CROSS, BLK

Part #: 1024232-458 Required per assembly: 1
Currently Not Available
