Cables replacement parts for 2020 Polaris RZR Turbo PRO XP LT (R03)

OEM Parts Polaris 2020 Polaris RZR Turbo PRO XP LT (R03) Cables

CABLES Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CABLE-POS, BAT, PDC, SOLENOID Part #: 4017599 Required per assembly: 1 Currently Not Available
2	CABLE-STARTER TO SOLENOID Part #: 4017600 Required per assembly: 1 Currently Not Available
3	CABLE-GROUND, BAT, CHAS Part #: 4017601 Required per assembly: 1 Currently Not Available
4	CABLE-ACCY, PDM, TO, ATB Part #: 4017602 Required per assembly: 1 Currently Not Available
5	CABLE-GROUND, ATB, CHAS Part #: 4081125 Required per assembly: 1 Currently Not Available
6	CABLE-GROUND, ENG, CHAS Part #: 4018026 Required per assembly: 1 Currently Not Available

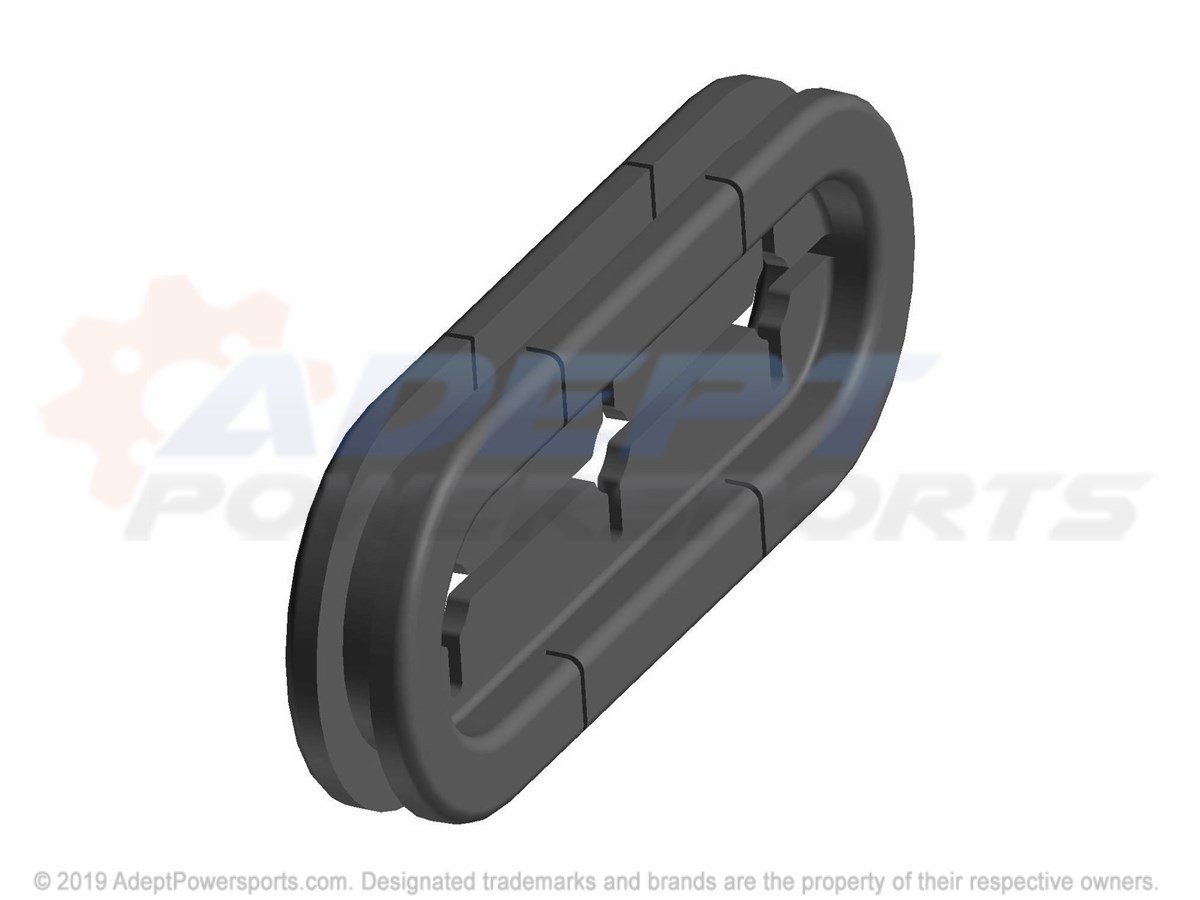

7	GROMMET-ROUTING Part #: 5454582 Required per assembly: 1 Currently Not Available
8	SCREW Part #: 7518529 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
9	STUD Part #: 7519333 Required per assembly: 1 Currently Not Available
10	SCR-HXFL-M8X1.25X20 TAP ZY3 Part #: 7520764 Required per assembly: 2 Currently Not Available
11	NUT, METRIC Part #: 7546703 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
12	NUT Part #: 7547274 Required per assembly: 1 Note: Nut, Flange Currently Not Available

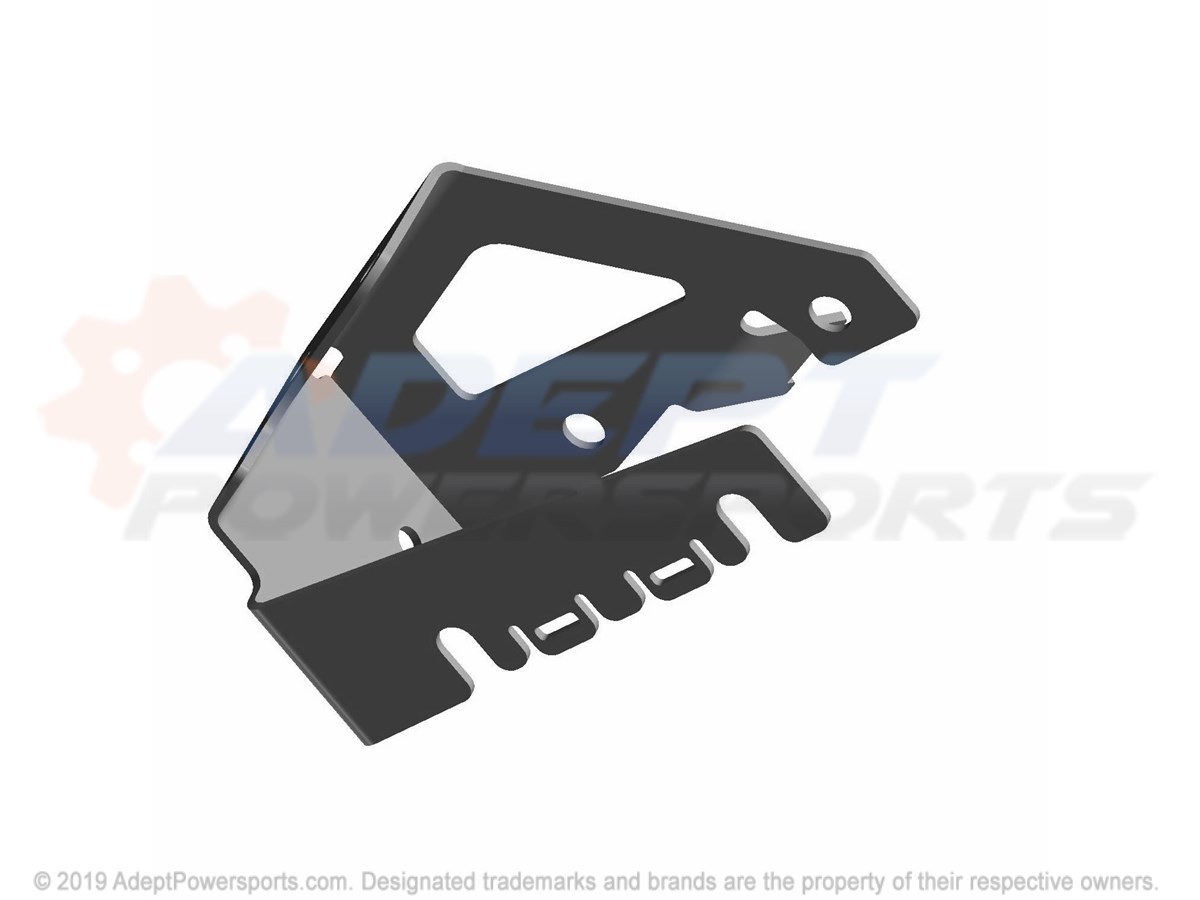

13	BRKT-MOUNT, PDM, ECOAT Part #: 5268102-329 Required per assembly: 1 Currently Not Available
14	NUT, FLANGE Part #: 7547270 Note: Nut, Hex Currently Not Available
15	SCREW Part #: 7512078 Required per assembly: 4 ~~$1.99~~ $1.15 - + Add to cart
16	RIVET Part #: 7661855 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
17	BLOCK-TERMINAL, 6, POS Part #: 4016007 Required per assembly: 1 Note: INCL. 18-20 Currently Not Available
18	FUSE-CARTRIDGE, 40A Part #: 4013891 Required per assembly: 1 Note: NOT SHOWN Currently Not Available
19	PLUG, ACCY, TB Part #: 5454283 Required per assembly: 6 Note: NOT SHOWN Currently Not Available
20	COVER, TB, JCASE Part #: 5454284 Required per assembly: 1 Note: NOT SHOWN Currently Not Available
