2020 Polaris RZR Turbo PRO XP LT (R03) Z20RAB92LR/D92LC/E92LT - Owners Manual And Tool Kit

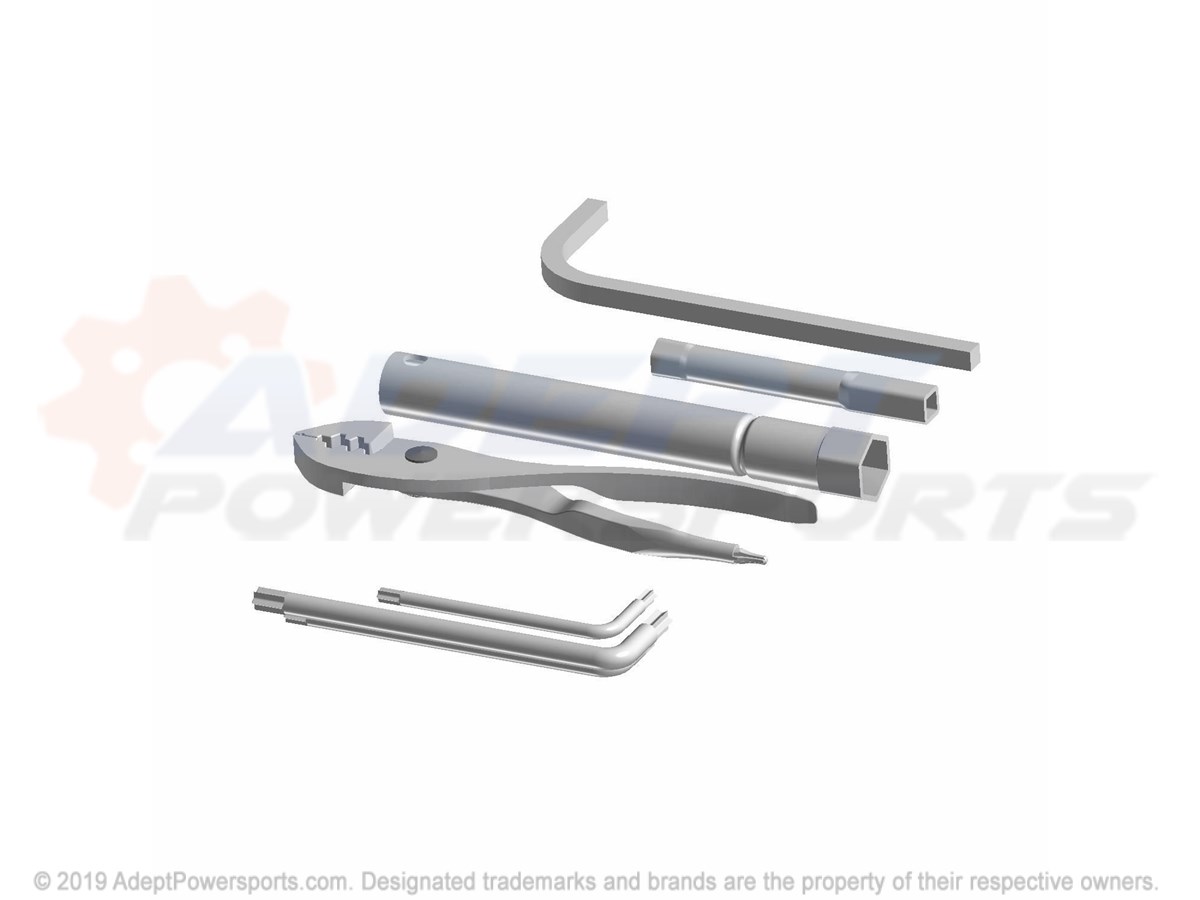

OWNERS MANUAL AND TOOL KIT Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2884001 K-Accessory, Tool, Rzr

K-ACCESSORY, TOOL, RZR

Part #: 2884001 Required per assembly: 1 Note: INCL. 2-4
Currently Not Available
2

N/A, USE, ASM/KITS

Part #: 9990005 Required per assembly: 1
Currently Not Available
3
Polaris 2879339 Wrench, Torx, T-40

WRENCH, TORX, T-40

Part #: 2879339 Required per assembly: 1
Currently Not Available
4

N/A, USE, ASM/KITS

Part #: 9990005 Required per assembly: 1
Currently Not Available
5
Polaris 2434016 Fuse, 10Amp

FUSE, 10AMP

Part #: 2434016 Required per assembly: 1 Note: Fuse, 10 AMP, Ignition
Sold in multiples of 10 only
Currently Not Available
6
Polaris 4011068 Fuse, 7.5, Amp

FUSE, 7.5, AMP

Part #: 4011068 Required per assembly: 1
Currently Not Available
7
Polaris 4011652 Fuse, Mini, Blade, 5, Amp

FUSE, MINI, BLADE, 5, AMP

Part #: 4011652 Required per assembly: 1 Note: Fuse, Mini Blade, 5 Amp.
Currently Not Available
8
Polaris 2682572 Pouch, Toolkit, 9"

POUCH, TOOLKIT, 9"

Part #: 2682572 Required per assembly: 1
Currently Not Available
9
Polaris 2885157-329 Wrench-Span/Spreader, Blk

WRENCH-SPAN/SPREADER, BLK

Part #: 2885157-329 Required per assembly: 1
Currently Not Available
10

MAN-OWN, 20, RZR

Part #: 9929980 Required per assembly: 1
Currently Not Available
10

MAN-OWN, RIDE, COM, 7", DSPLY, ORV

Part #: 9930905 Required per assembly: 1 Note: LC
Currently Not Available
11

GAUGE-TIRE PRESSURE 30 PSI

Part #: 2878518 Required per assembly: 1
Currently Not Available
12
Polaris 2883577 Tool-Belt Removal

TOOL-BELT REMOVAL

Part #: 2883577 Required per assembly: 1
Currently Not Available
