Half Shaft, Front replacement parts for 2020 Polaris RZR Turbo PRO XP LT (R03)

OEM Parts Polaris 2020 Polaris RZR Turbo PRO XP LT (R03) Half Shaft, Front

HALF SHAFT, FRONT Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

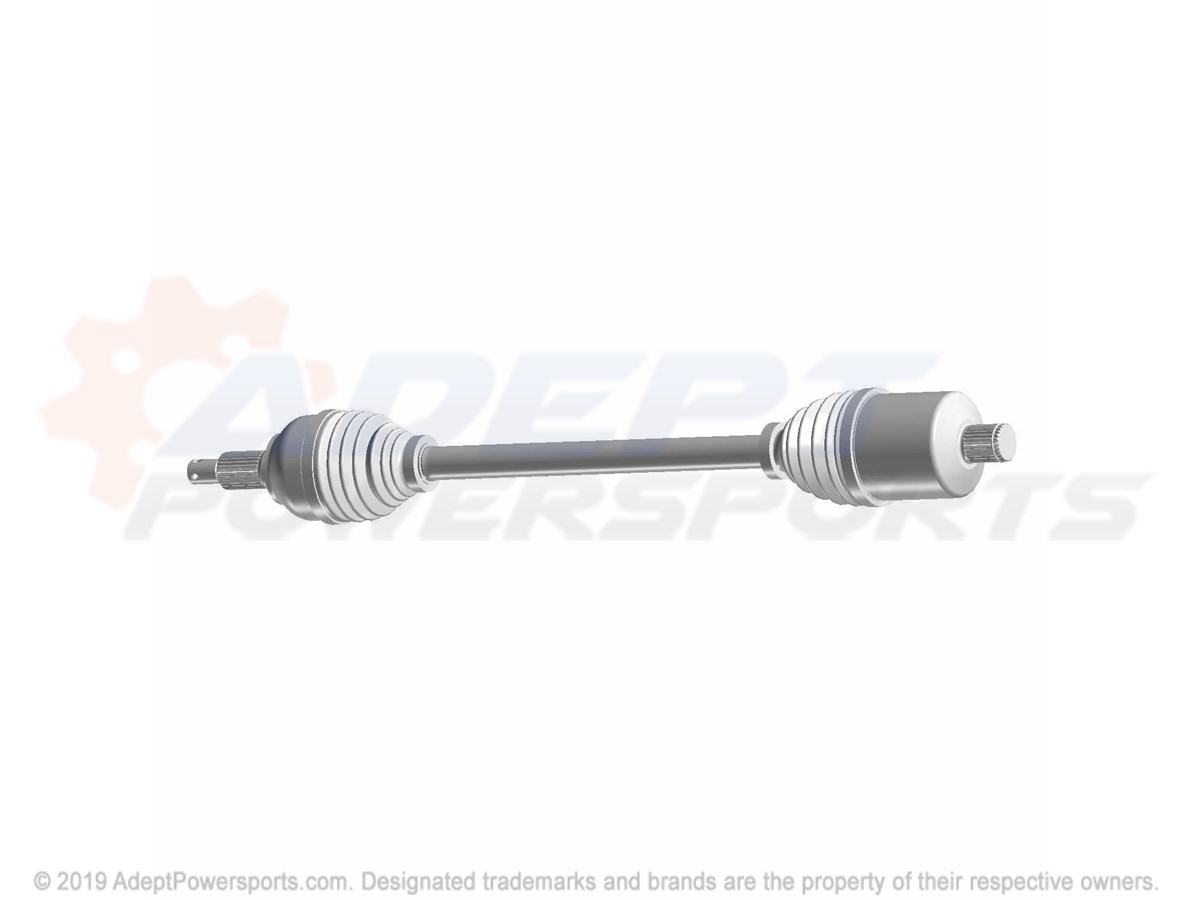

1	ASM-HALFSHAFT, FRONT, 28T, HA Part #: 1334389 Required per assembly: 1 Note: INCL. ALL Currently Not Available
2	ASM-OUTER, JOINT(LCM-5121), FRT Part #: 3236505 Currently Not Available
3	K-BOOT, OUTER, FRONT Part #: 3236507 Currently Not Available
4	SHAFT(LCM20380F2), FRONT Part #: 3236511 Currently Not Available
5	K-BOOT, INNER, FRONT Part #: 3236508 Currently Not Available
6	ASM-INNER, JOINT(LCM-6117), FRT Part #: 3236506 Currently Not Available
7	CIRCLIP-2.0X31.6, PR-2085 Part #: 7710769 Currently Not Available
8	CLIP-SHIFT, FRONT Part #: 3236510 Currently Not Available
9	CLIP-INNER, JOINT, FRT Part #: 3236509 Currently Not Available
10	GREASE Part #: 3236525 Currently Not Available
