2020 Polaris RZR Turbo PRO XP LT (R03) Z20RAB92LR/D92LC/E92LT - Cylinder Head

CYLINDER HEAD Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 3023842 Asm-Camshaft, Int, 1040-234

ASM-CAMSHAFT, INT, 1040-234

Part #: 3023842 Note: FROM 9/25/2019
Currently Not Available
1
Polaris 3023842 Asm-Camshaft, Int, 1040-234

ASM-CAMSHAFT, INT, 1040-234

Part #: 3023842 Required per assembly: 1 Note: TO 9/25/2019
Currently Not Available
2

ASM-CAMSHAFT, EXH, 1010-230

Part #: 3023843 Note: FROM 9/25/2019
Currently Not Available
2

ASM-CAMSHAFT, EXH, 1010-230

Part #: 3023843 Required per assembly: 1 Note: TO 9/25/2019
Currently Not Available
3
Polaris 3023564 Asm-Cylinder Head

ASM-CYLINDER HEAD

Part #: 3023564 Required per assembly: 1 Note: INCL. 4-7
Currently Not Available
4
Polaris 5132835 Pin, Dowel

PIN, DOWEL

Part #: 5132835 Required per assembly: 2
Currently Not Available
5
Polaris 7052413 Plug

PLUG

Part #: 7052413 Required per assembly: 4
Currently Not Available
6
Polaris 7520689 Scr-Hxfl M6x1.0X35 10.9

SCR-HXFL M6X1.0X35 10.9

Part #: 7520689 Required per assembly: 10
Currently Not Available
7
Polaris 7520688 Scr-Hxfl M6x1.0X70 10.9

SCR-HXFL M6X1.0X70 10.9

Part #: 7520688 Required per assembly: 2
Currently Not Available
8
Polaris 7520978 Scr-Hxfl, M11x1.25X150, 10.9, Sem

SCR-HXFL, M11X1.25X150, 10.9, SEM

Part #: 7520978 Required per assembly: 6
Currently Not Available
9
Polaris 7519153 Screw

SCREW

Part #: 7519153 Required per assembly: 2
Currently Not Available
10

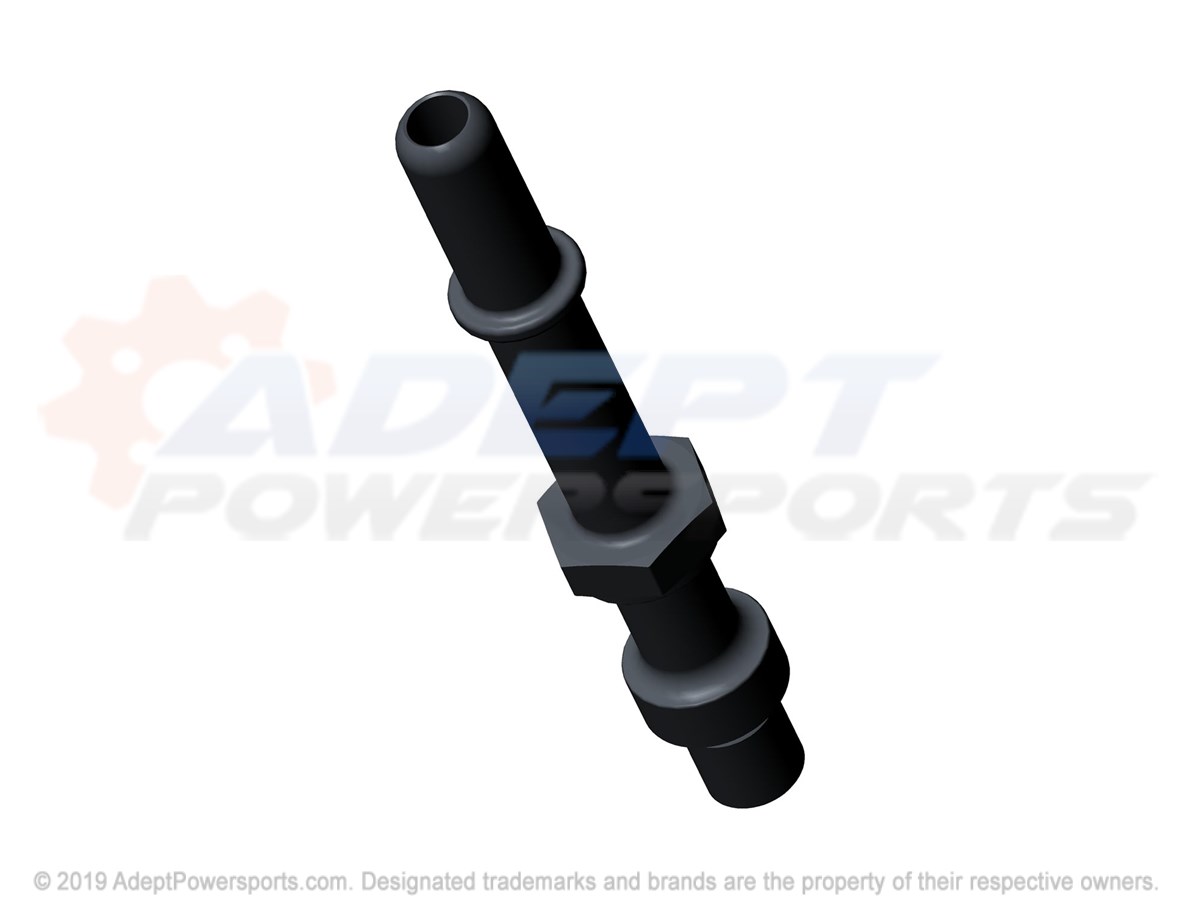

Polaris 7052681 Fitting-Bleed

FITTING-BLEED

Part #: 7052681 Required per assembly: 1
Currently Not Available
