Wire Harness, Chassis - Z20rad92lc replacement parts for 2020 Polaris RZR Turbo PRO XP LT (R03)

OEM Parts Polaris 2020 Polaris RZR Turbo PRO XP LT (R03) Wire Harness, Chassis - Z20rad92lc

WIRE HARNESS, CHASSIS - Z20RAD92LC Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-CHASSIS, RZR, T, 96X64, DX Part #: 2415218 Required per assembly: 1 Note: INCL 2-36 Currently Not Available

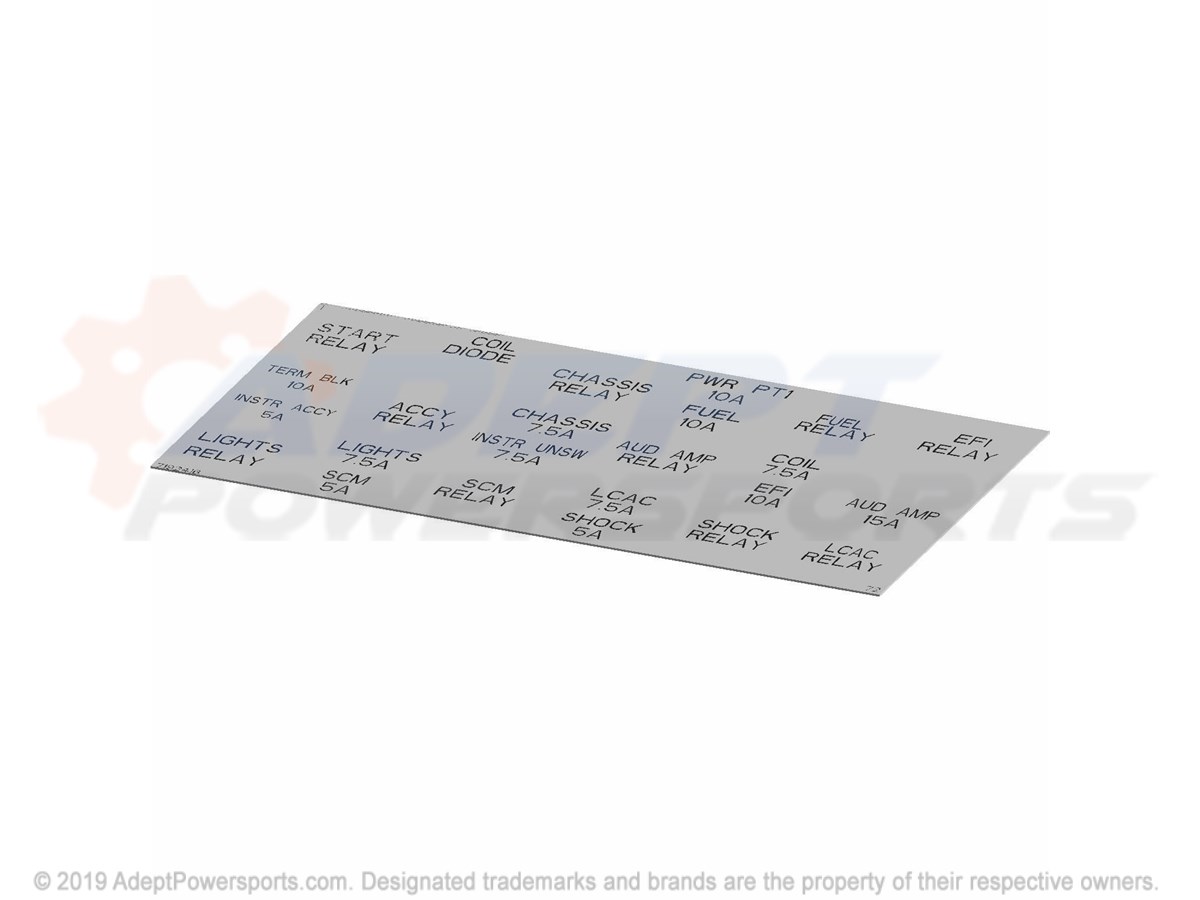

2	LABEL-FUSE BOX Part #: 7192416 Required per assembly: 1 Currently Not Available
3	LABEL-PDM, RZR Part #: 7189870 Required per assembly: 1 Currently Not Available
4	CLIP-XMAS, 6.35MM, HOLE, TAPE-ON Part #: 7082411 Required per assembly: 13 Currently Not Available
5	CLIP-FIR, TREE, 12.5MM, OFF, 90DEG Part #: 7082406 Required per assembly: 1 Currently Not Available
6	CLIP-EDGE, 1-3MM, THICKNESS Part #: 7082403 Required per assembly: 5 Currently Not Available
7	CLIP-EDGE, 1-3MM, THICKNESS Part #: 7082402 Required per assembly: 1 Currently Not Available
8	CLIP-EDGE, 3-6MM, THICKNESS Part #: 7082399 Required per assembly: 2 Currently Not Available
9	CLIP-ROUTING, DIN, BOX Part #: 7082020 Required per assembly: 1 Currently Not Available
10	CABLE TIE-FIR TREE Part #: 7082003 Required per assembly: 4 Currently Not Available
11	STRAP, PANDUIT, DOUBLE, LOOP Part #: 7081916 Required per assembly: 1 Currently Not Available
12	CLIP-EDGE, HARNESS Part #: 7081890 Required per assembly: 5 Currently Not Available
13	STRAP-CABLE TIEW/EDGECLIP3-6MM Part #: 7081824 Required per assembly: 2 Currently Not Available
14	STRAP-CABLE TIE W/EDGE CLIP Part #: 7081808 Required per assembly: 4 Currently Not Available
15	CLIP-ROUTING Part #: 7081496 Required per assembly: 33 Currently Not Available
16	STRAP PANDUIT Part #: 7080138 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
17	GROMMET-65MM, BLK Part #: 5813954 Required per assembly: 2 Currently Not Available
18	CAP-VINYL, 125X375, BLACK Part #: 5438230 Required per assembly: 1 Currently Not Available
19	GROMMET-SPEAKER, VOLUME Part #: 5413027 Required per assembly: 1 Currently Not Available

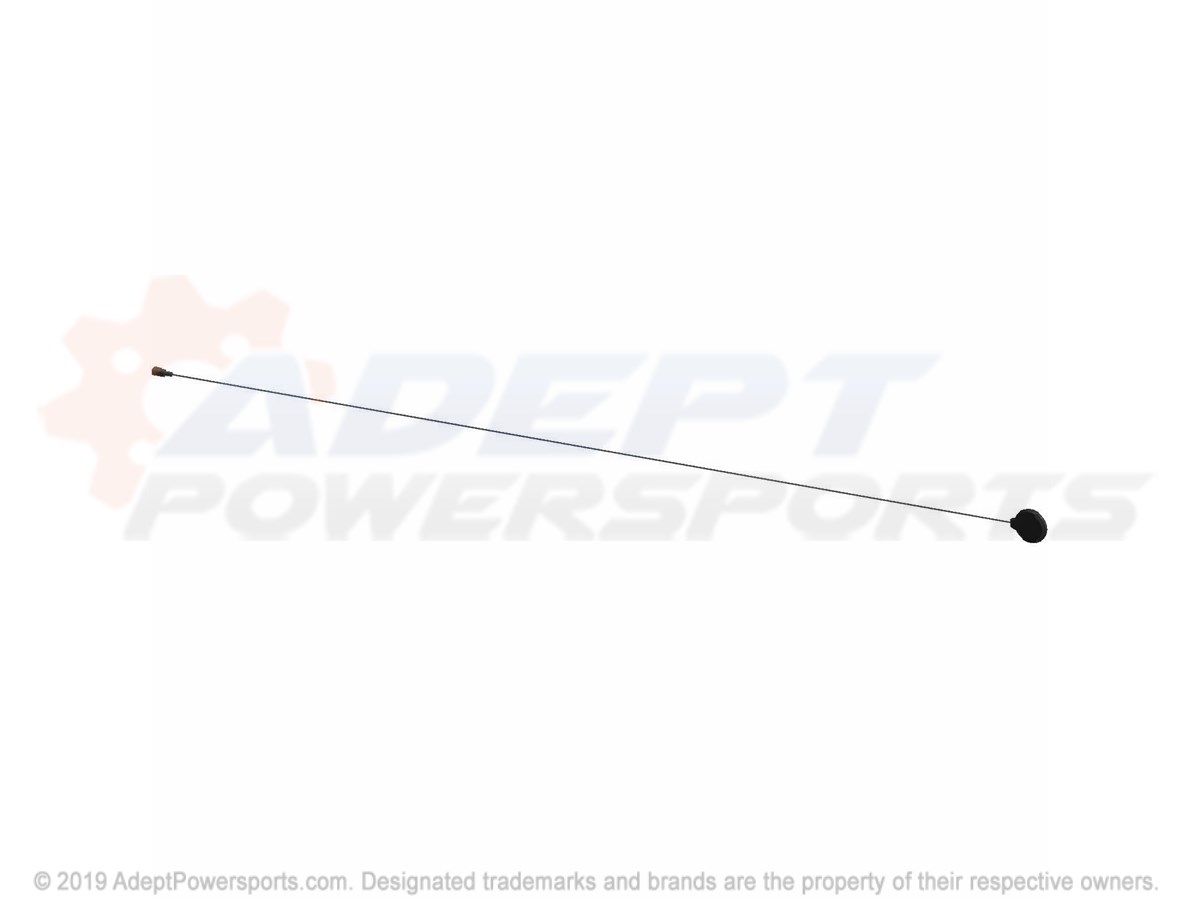

20	ANTENNA, GPS, EXT Part #: 4018662 Required per assembly: 1 Currently Not Available
21	FUSE-ZCASE, 200A Part #: 4018415-200 Required per assembly: 1 Currently Not Available
22	FUSE-MCASE, 40A Part #: 4018414-40 Required per assembly: 3 Currently Not Available
23	FUSE-MCASE, 30A Part #: 4018414-30 Required per assembly: 5 Currently Not Available
24	CAP-EVAP CONNECTOR Part #: 4018066 Required per assembly: 1 Currently Not Available
25	FUSE-PDM Part #: 4017598 Required per assembly: 1 Currently Not Available
26	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 10 Currently Not Available
27	BOOT-TMAP Part #: 4016101 Required per assembly: 1 Currently Not Available
28	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
29	FUSE, MINI, BLADE, 5, AMP Part #: 4011652 Required per assembly: 3 Note: Fuse, Mini Blade, 5 Amp. Currently Not Available
30	DIODE-6AMP Part #: 4011474 Required per assembly: 1 Currently Not Available
31	FUSE, 7.5, AMP Part #: 4011068 Required per assembly: 5 Currently Not Available
32	FUSE, 10AMP Part #: 2434016 Required per assembly: 4 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
33	RESISTOR-EVAP PULLUP-1K0HM Part #: 2414716 Required per assembly: 2 Currently Not Available
34	LED-PANEL, MNT, 12V, BLUE Part #: 2413217 Required per assembly: 1 Currently Not Available
35	DIODE, 6, AMP Part #: 2411035 Required per assembly: 1 Currently Not Available
36	FUSE, MINI, BLADE, 15, AMP. Part #: 4010859 Required per assembly: 1 Currently Not Available
37	SCREW Part #: 7518533 Required per assembly: 2 Note: Screw, Flange Currently Not Available
