OEM Parts Polaris 2020 Polaris RZR Turbo PRO XP LT (R03) Mounting, Front Gearcase

2020 Polaris RZR Turbo PRO XP LT (R03) Z20RAB92LR/D92LC/E92LT - Mounting, Front Gearcase

MOUNTING, FRONT GEARCASE Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

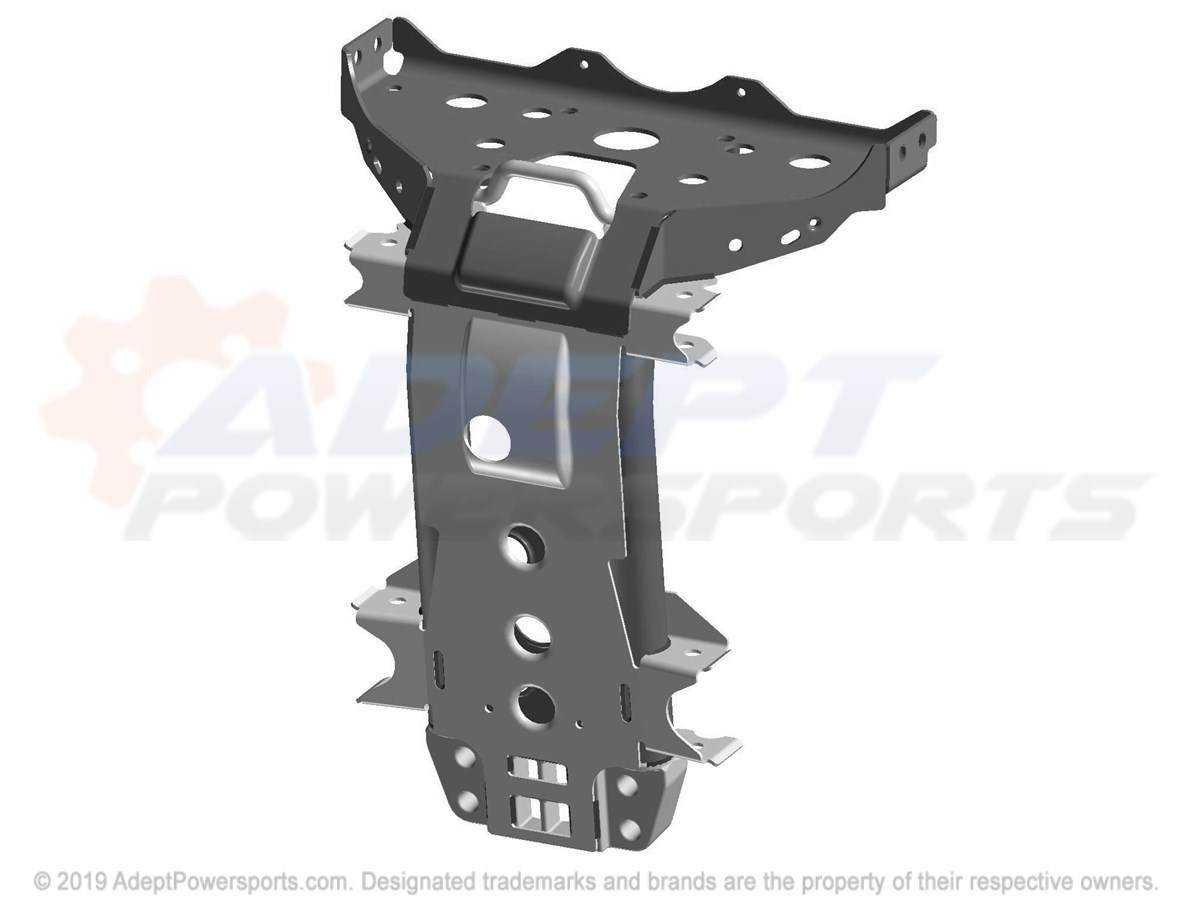

Polaris 1025204-458 Weld-Frame, Frt, Lwr, Blk

WELD-FRAME, FRT, LWR, BLK

Part #: 1025204-458 Required per assembly: 1
Currently Not Available
2

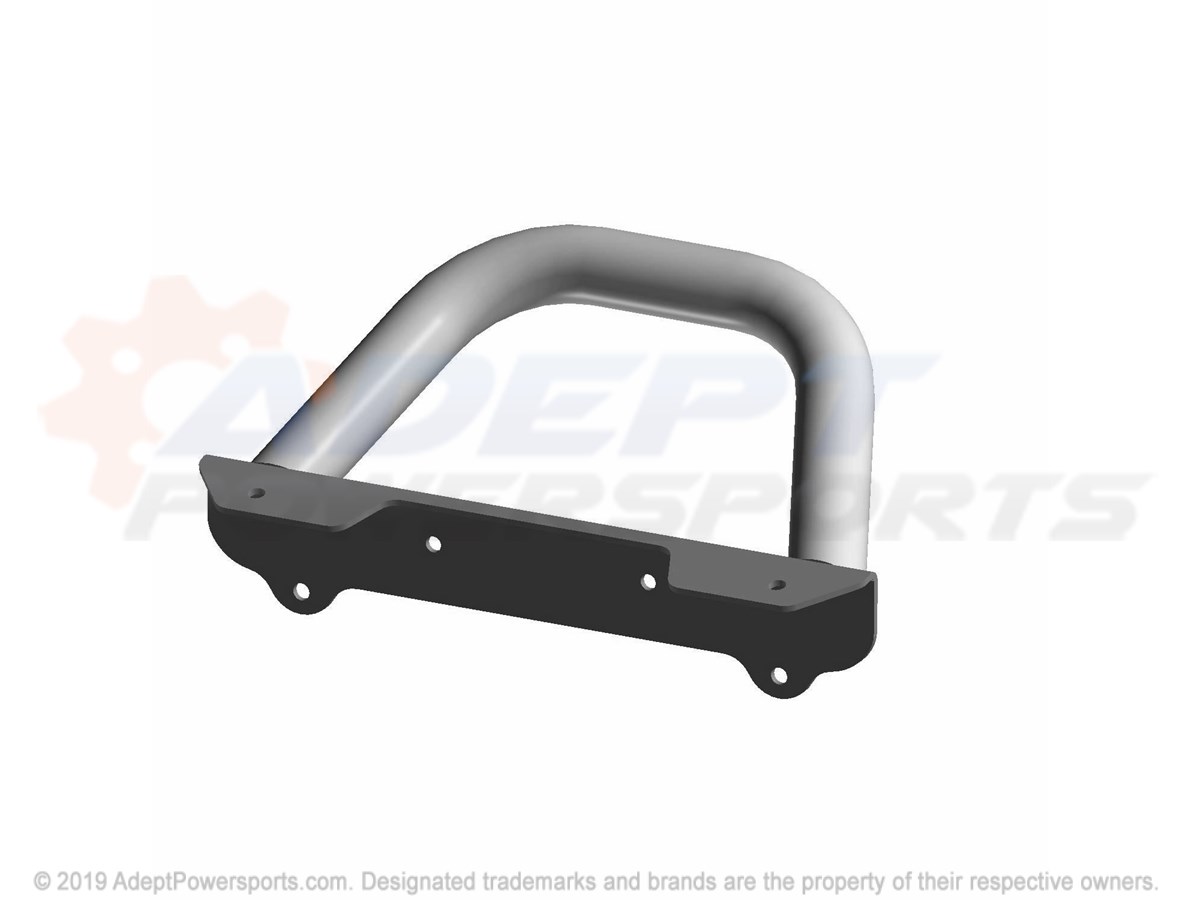

Polaris 1023867-458 Weld-Frt, Bumper, Blk

WELD-FRT, BUMPER, BLK

Part #: 1023867-458 Required per assembly: 1
Currently Not Available
3

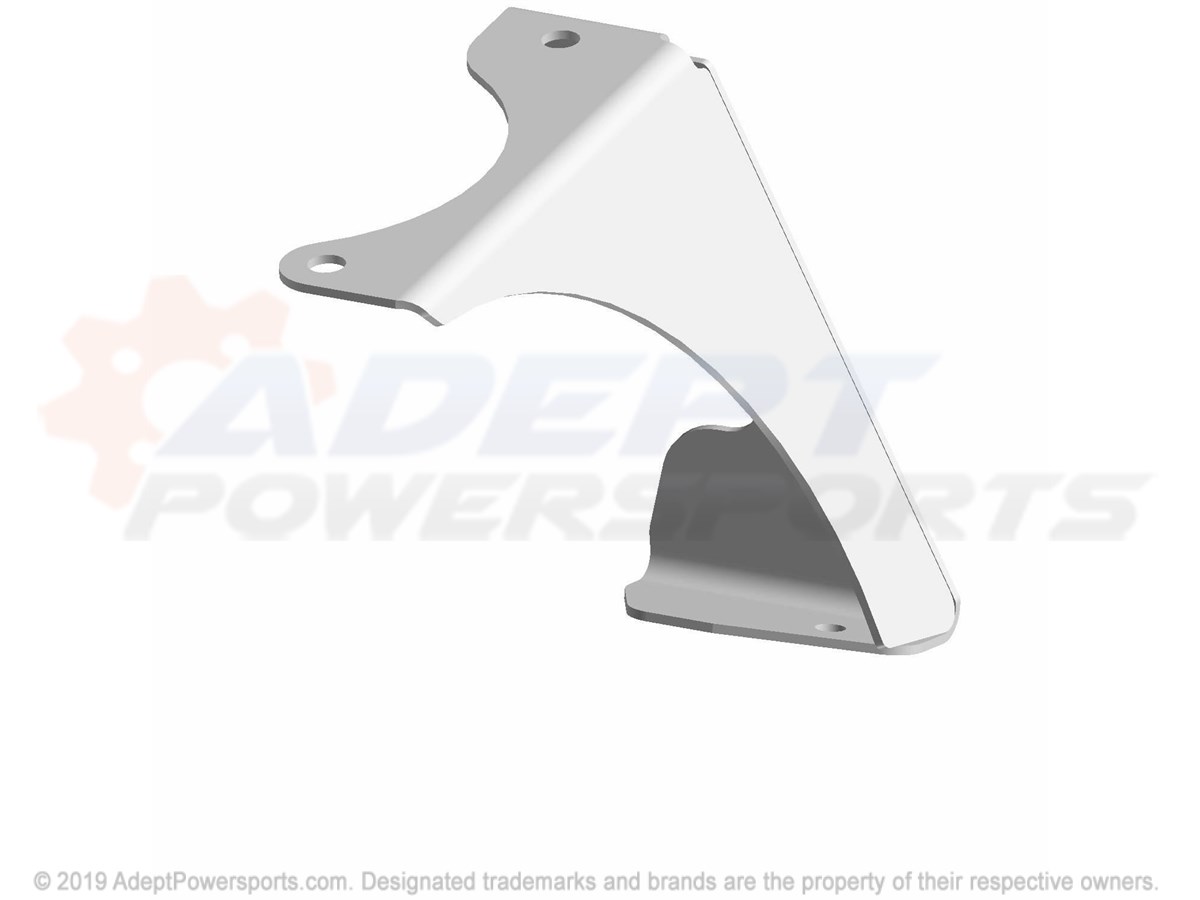

Polaris 5267507-458 Brkt-Front, Bumper, Lh, Blk

BRKT-FRONT, BUMPER, LH, BLK

Part #: 5267507-458 Required per assembly: 1
Currently Not Available
4

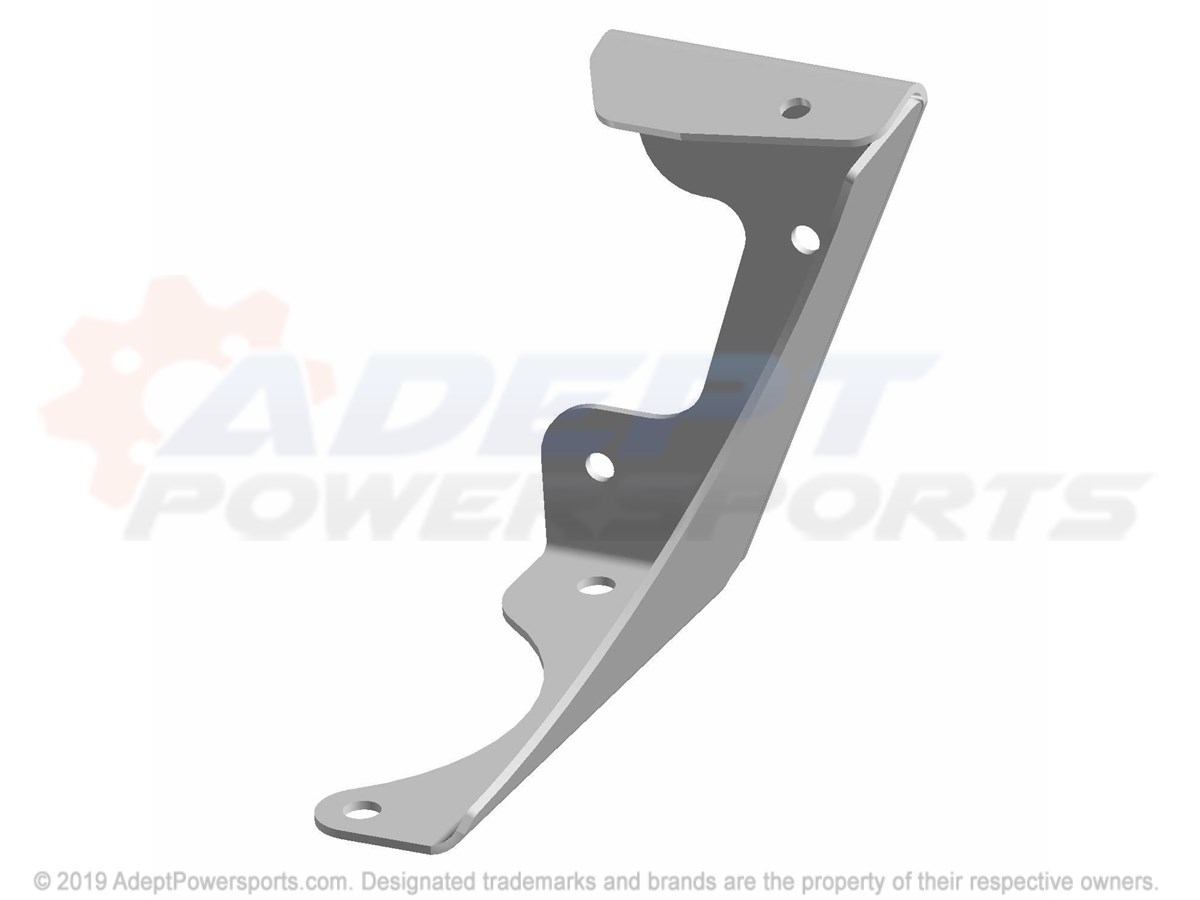

Polaris 5267508-458 Brkt-Front, Bumper, Rh, Blk

BRKT-FRONT, BUMPER, RH, BLK

Part #: 5267508-458 Required per assembly: 1
Currently Not Available
5
Polaris 7518460 Screw

SCREW

Part #: 7518460 Required per assembly: 4 Note: Screw, Flange
Currently Not Available
6
Polaris 7518644 Screw

SCREW

Part #: 7518644 Required per assembly: 4
Currently Not Available
7
Polaris 7518702 Bolt, Flange, [2X4]

BOLT, FLANGE, [2X4]

Part #: 7518702 Required per assembly: 4 Note: Bolt, Flange
Currently Not Available
8

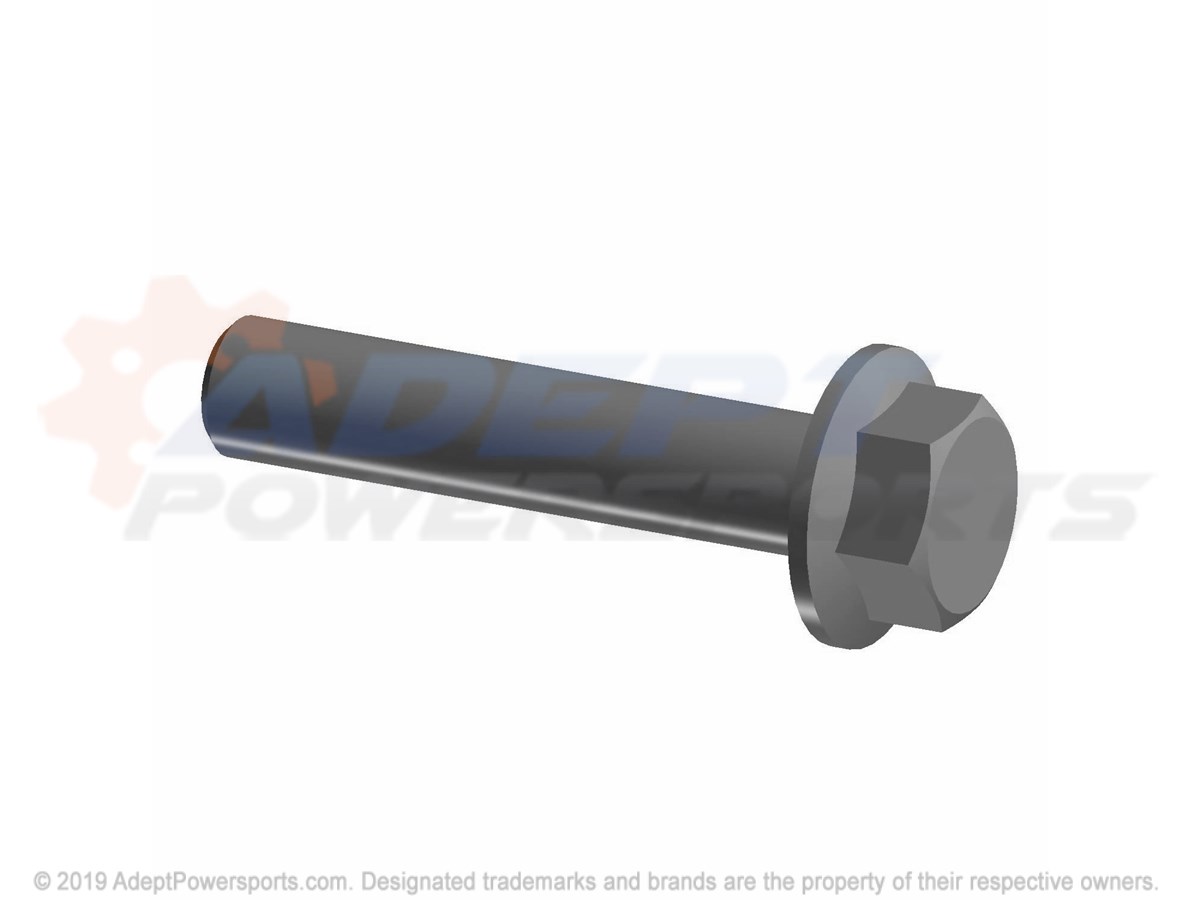

Polaris 7521159 Scr-Hxfl-M14x2x70 10.9 Zfb

SCR-HXFL-M14X2X70 10.9 ZFB

Part #: 7521159 Required per assembly: 4
Currently Not Available
9

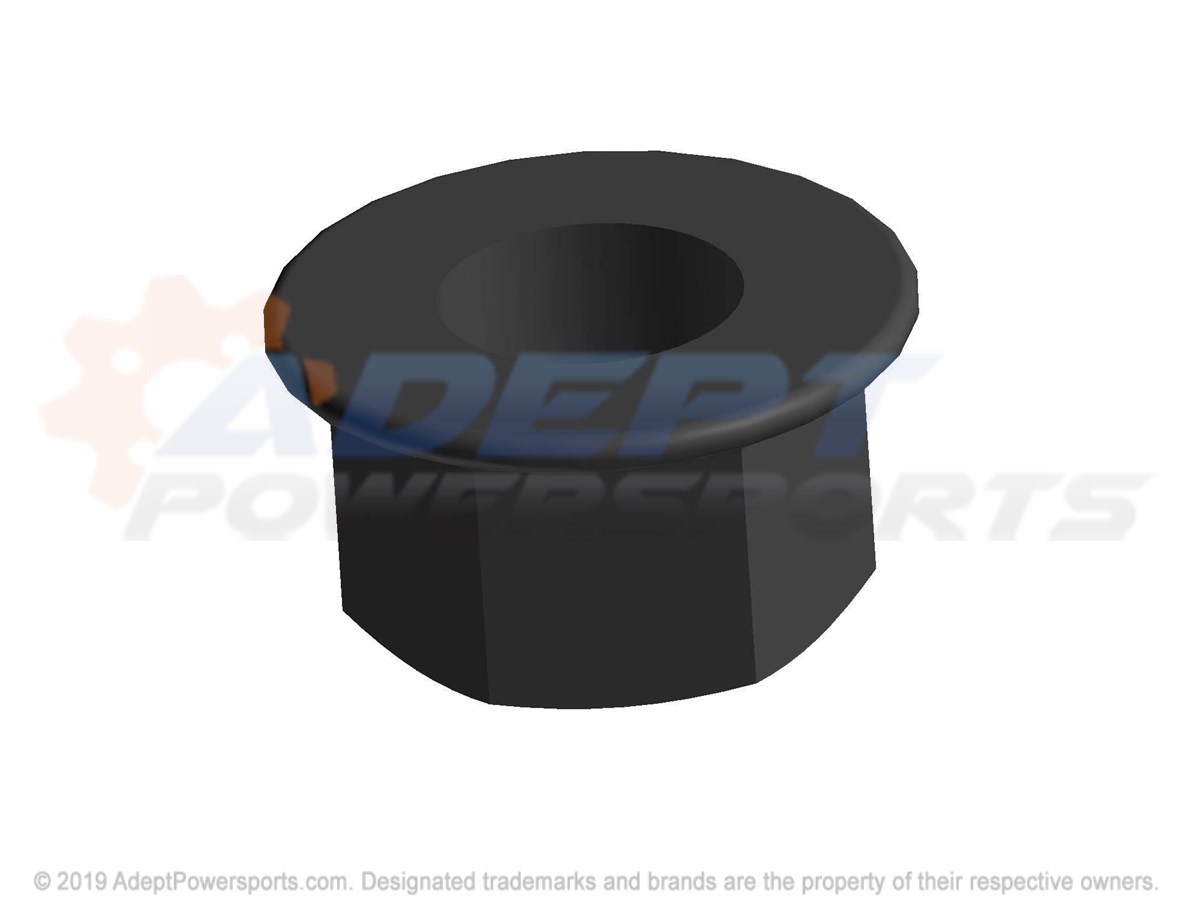

NUT, FLANGE

Part #: 7547332 Note: Nut, Nylok
Currently Not Available
10
Polaris 7547423 Nut

NUT

Part #: 7547423 Required per assembly: 4
Currently Not Available
11
Polaris 7547981 Nut-Hxfl-M14x2 8 Zfb

NUT-HXFL-M14X2 8 ZFB

Part #: 7547981 Required per assembly: 4
Currently Not Available
12

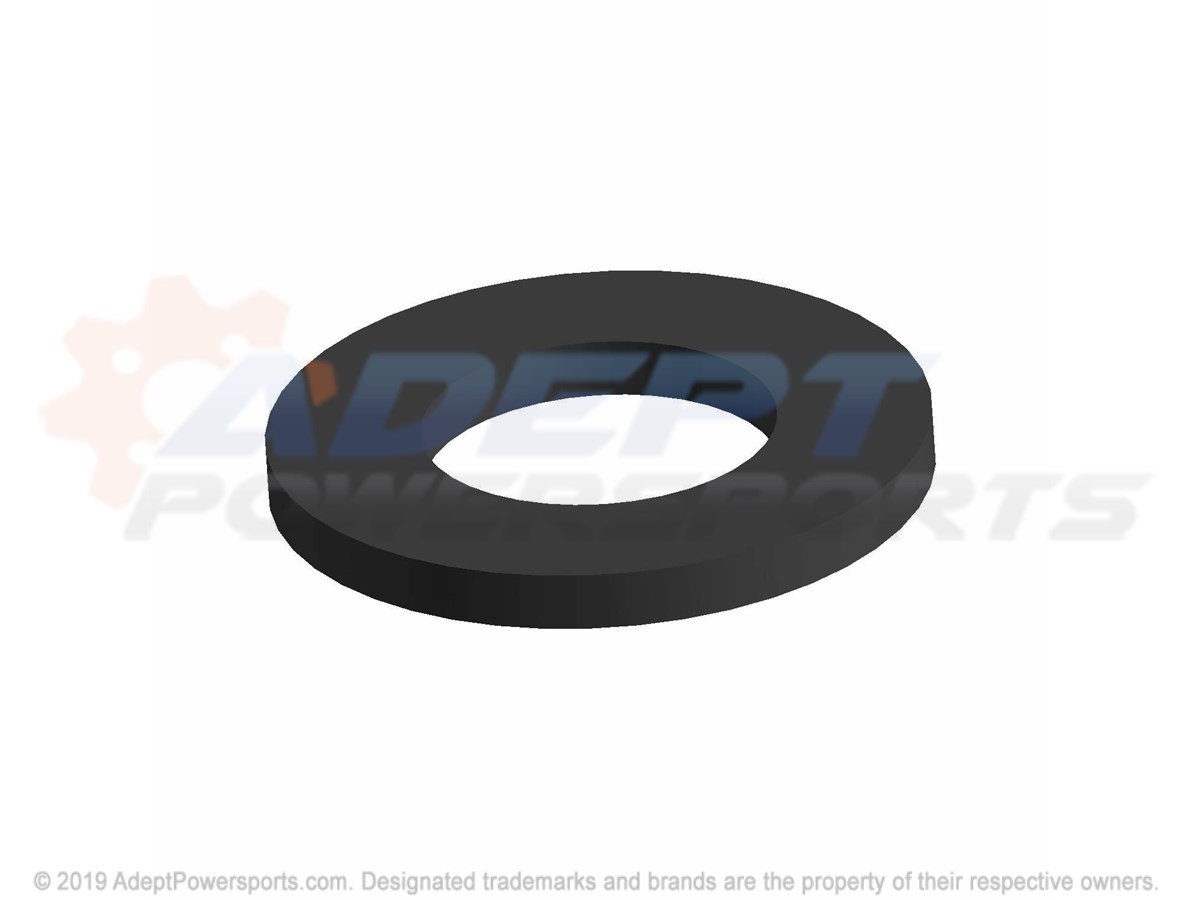

Polaris 7557195 Wshr-15X28x2.5 Zpb

WSHR-15X28X2.5 ZPB

Part #: 7557195 Required per assembly: 4
Currently Not Available
