Cooling Routing Engine replacement parts for 2020 Polaris RZR Turbo PRO XP LT (R03)

OEM Parts Polaris 2020 Polaris RZR Turbo PRO XP LT (R03) Cooling Routing Engine

COOLING ROUTING ENGINE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-VENT, HEAD Part #: 1241324 Required per assembly: 1 Currently Not Available

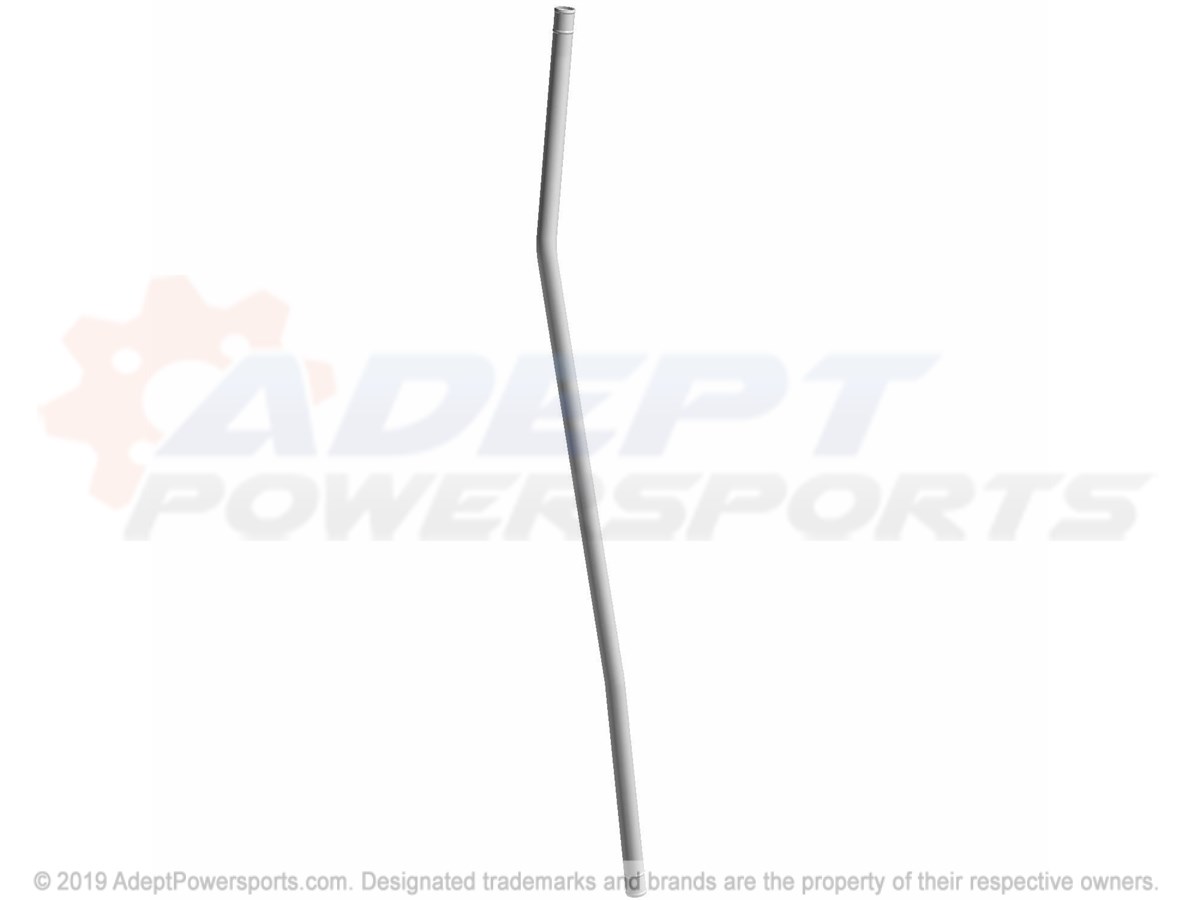

2	TUBE-COOLANT, HT, UPPER Part #: 5141926 Required per assembly: 1 Currently Not Available

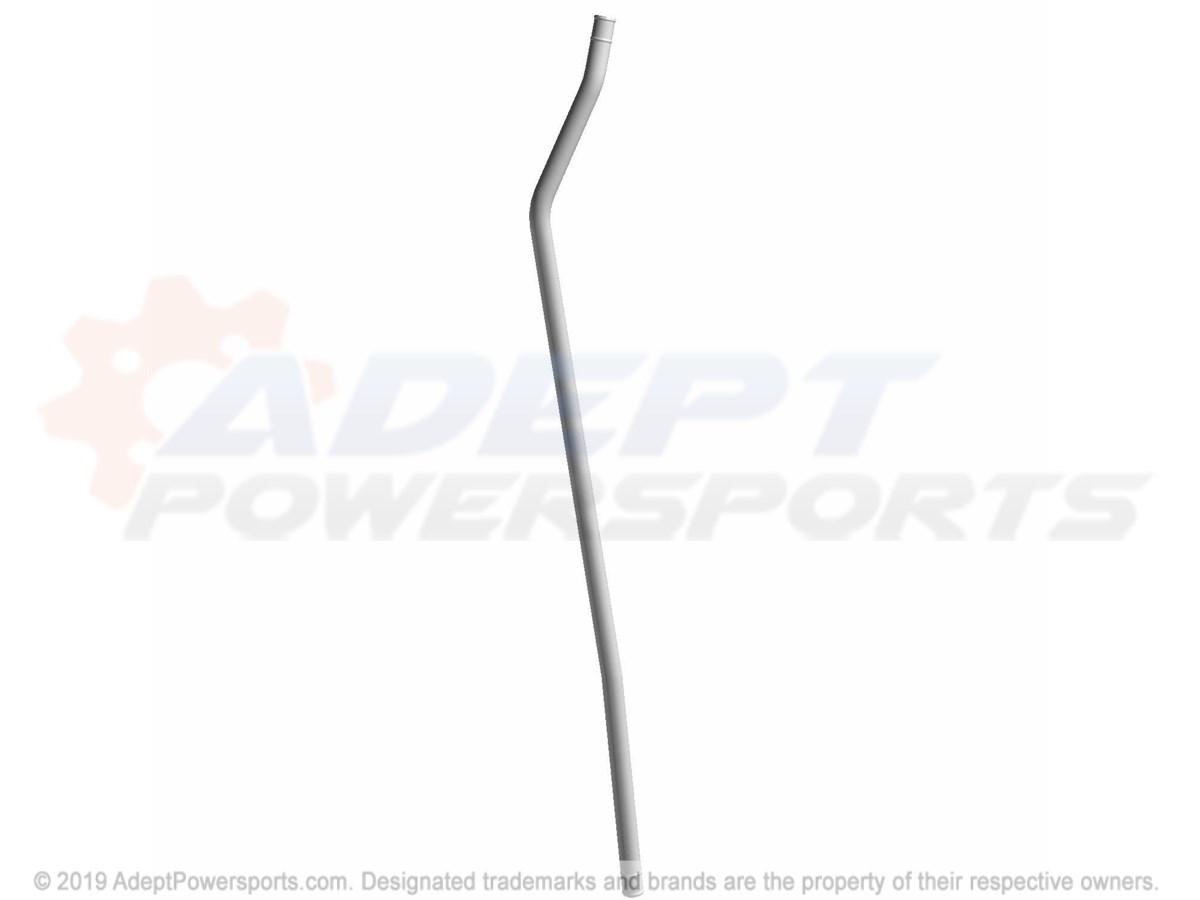

3	TUBE-COOLANT, HT, LOWER Part #: 5141927 Required per assembly: 1 Currently Not Available
4	HOSE-RADIATOR, HT, IN Part #: 5416568 Required per assembly: 1 Currently Not Available
5	HOSE-RADIATOR, HT, OUT Part #: 5416569 Required per assembly: 1 Currently Not Available
6	HOSE-ENG, IN, TUBE/T Part #: 5416570 Required per assembly: 1 Currently Not Available
7	HOSE-ENG, IN, T/ENG Part #: 5416571 Required per assembly: 1 Currently Not Available
8	HOSE-OUT, ENGINE, SURGE/T Part #: 5416572 Required per assembly: 1 Currently Not Available
9	HOSE-ENGINE OUT Part #: 5416573 Required per assembly: 1 Currently Not Available
10	BRACKET-COOLANT TUBE Part #: 5451221 Required per assembly: 3 Currently Not Available
11	T-CONNECTOR Part #: 7052373 Required per assembly: 1 Note: T-Connector Currently Not Available

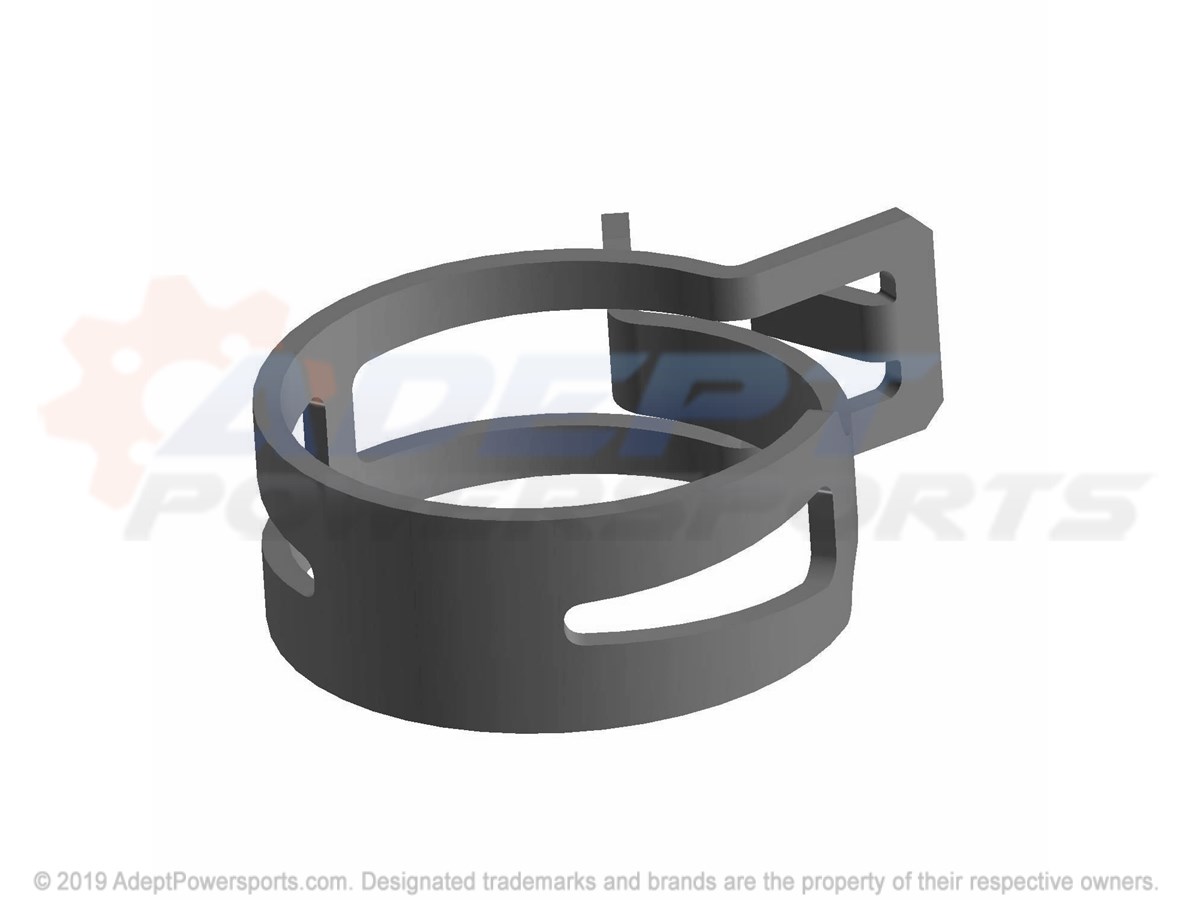

12	CLAMP, HOSE Part #: 7081192 Required per assembly: 2 Currently Not Available
13	CLAMP, HOSE Part #: 7081432 Required per assembly: 1 Currently Not Available
14	CLIP-ROUTING Part #: 7081496 Required per assembly: 5 Currently Not Available
15	SPRINGBAND-CLAMP, BLK Part #: 7082308 Required per assembly: 7 Currently Not Available
16	CLIP-FIR, TREE, 12.5MM, OFF, 90DEG Part #: 7082406 Required per assembly: 2 Currently Not Available
17	SCREW Part #: 7512026 Required per assembly: 3 Note: Screw Currently Not Available
18	STRAP-CABLE TIE W/EDGE CLIP Part #: 7081808 Required per assembly: 1 Currently Not Available
19	SCREW Part #: 7519840 Required per assembly: 6 Currently Not Available
20	CLAMP-CTB44 Part #: 7082269 Required per assembly: 2 Currently Not Available
21	CLIP-ROUTING Part #: 7081496 Required per assembly: 1 Currently Not Available
